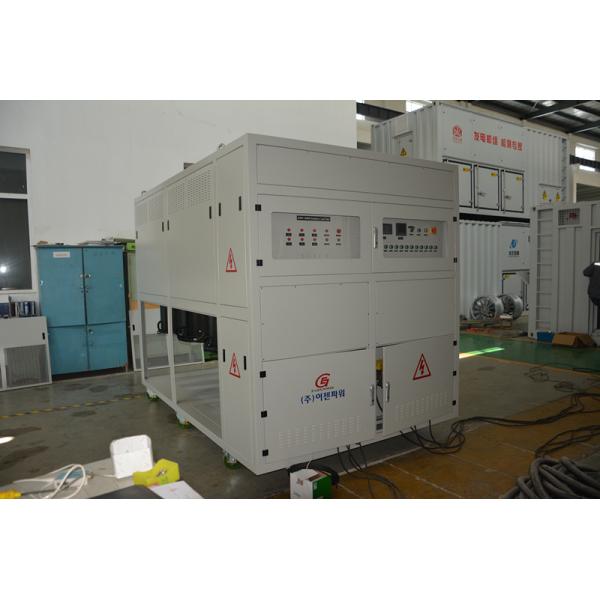

Cabinet Grey Inductive Load Bank For Generator Testing , Three Phase Load Bank

Product Categories
Hebei Kaixiang Electrical Technology Co., Ltd
Contact Now

Cabinet Grey Inductive Load Bank For Generator Testing , Three Phase Load Bank

  • 1
  • 2

Brand Name : KAIXIANG

Model Number : AC400-1000KVA

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15 Sets per Month

Delivery Time : Within 30 working days

Packaging Details : Wooden Case for Load bank

Casing Dimensions and Cooling : about 4000*2350*2591mm (length*width*height) Forced air cooling，Horizontal inlet air，Vertical cooling

Transportation : Hoisting, there are lifting lug in top of casing

Casing Color : Grey（RAL7035）

Ambient Temperature : -10℃～+50℃

Voltage range : AC400v 50hz ±10%

Display Precision : 0.5 class

Contact Now


1000KVAConnection Box Load Bank Cabinet Grey Casing Color For Generator Testing

Product description

The system can accurately test output power and load capacity with all kinds of generators. System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software. User can control load bank through local control panel, also through software.

Technical Parameter

Rating Voltage/Frequency400VAC/50Hz, 3 phase 4 wire,
Voltage range400v 50hz ±10%
Max Rated power

Apparent Power: 1000kVA
Resistive Power: 800kW
Reactive Power: 600kvar

Load Resolution

Resistive load:1.2.2.5.10.10.20.50.100.200.200.200kw
Reactive load: 1.2.2.5.10.10.20.50.100.200.200kvar

Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control PowerAC380VAC/50Hz,3 phase 4 wire
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Terminal Block

Communication InterfaceRS485,
Casing Dimensions and Coolingabout 4000*2350*2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling
WeightAbout 3600kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃～+50℃
Relative Humidity≤95%
Altitude≤1500 meter
Atmospheric Pressure86～106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

Communication type: through RS232, RS485
Load mode: manual load or automatic load.
Manual load: input power and power factor.
Automatic load: User can set several periods of power and time, and in turn of 0%→25%→50%→75%→100%, etc preset order to make automatic load testing.

Application

Motor manufacturing: The load bank is an ideal test equipment for generator power ,the frequency,the voltage,the current,power factor and other generator parameters.Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load.
